Description
The official partner of ECOSOFT in Azerbaijan is AQUALINK LLC.

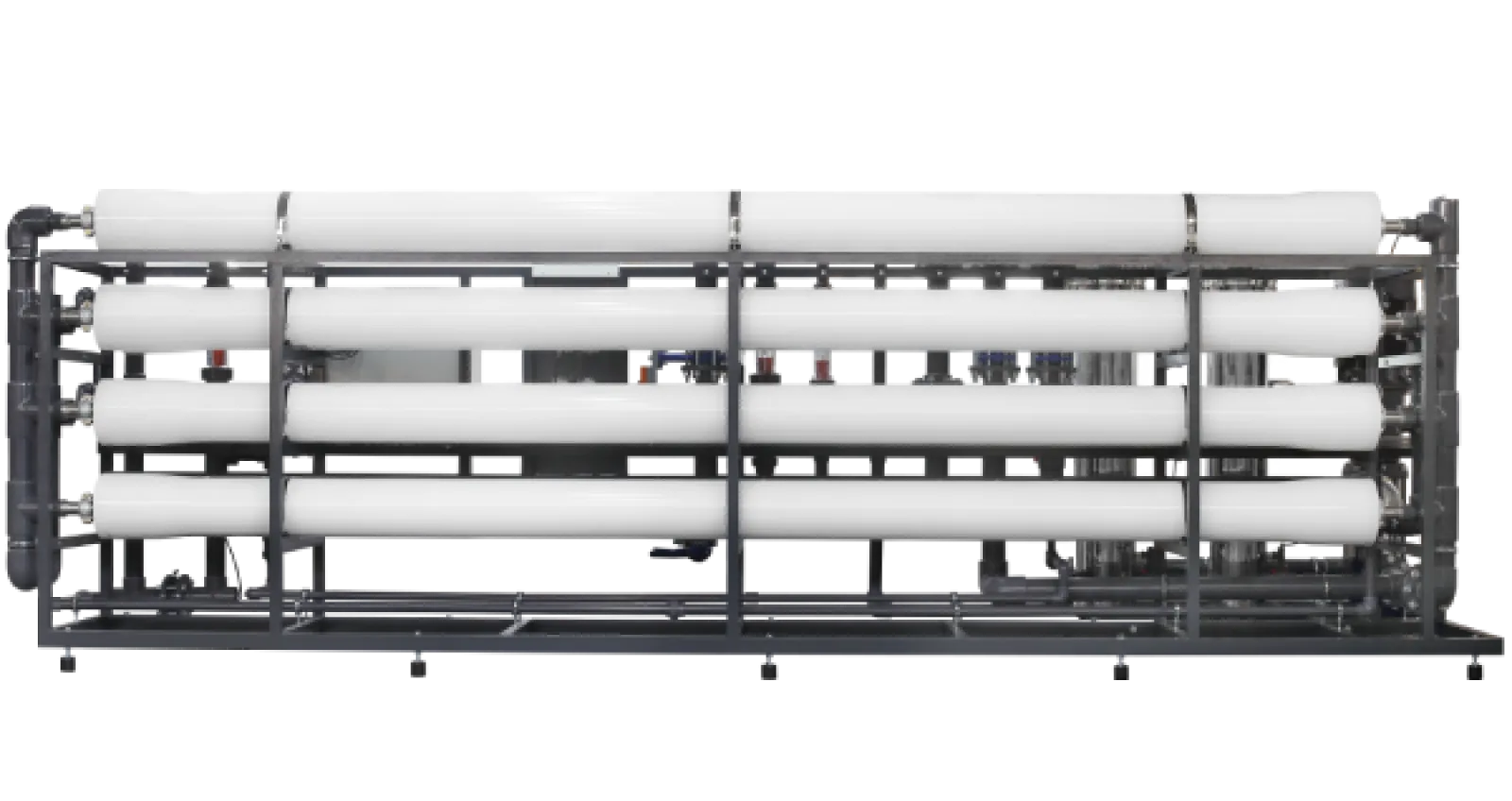

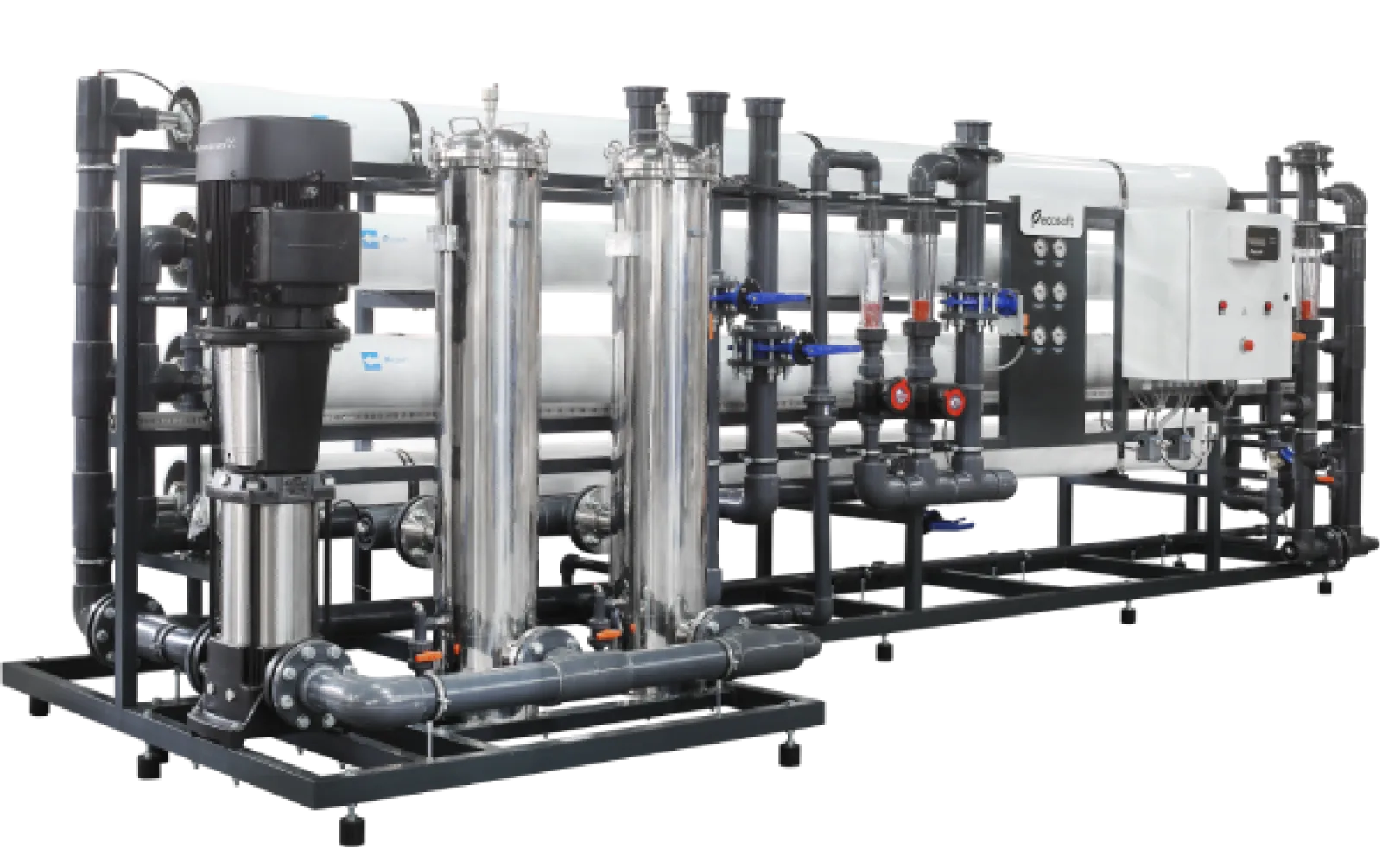

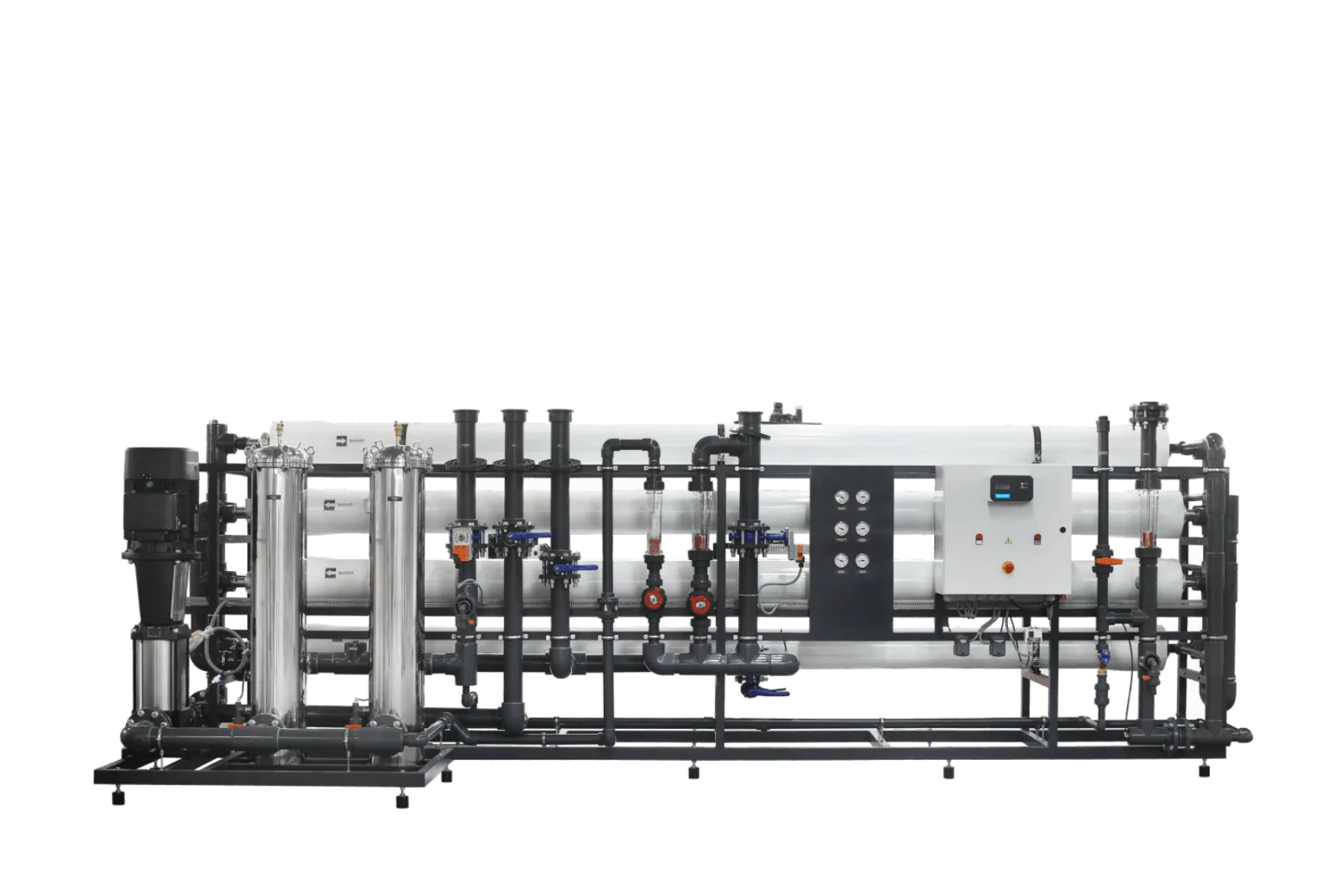

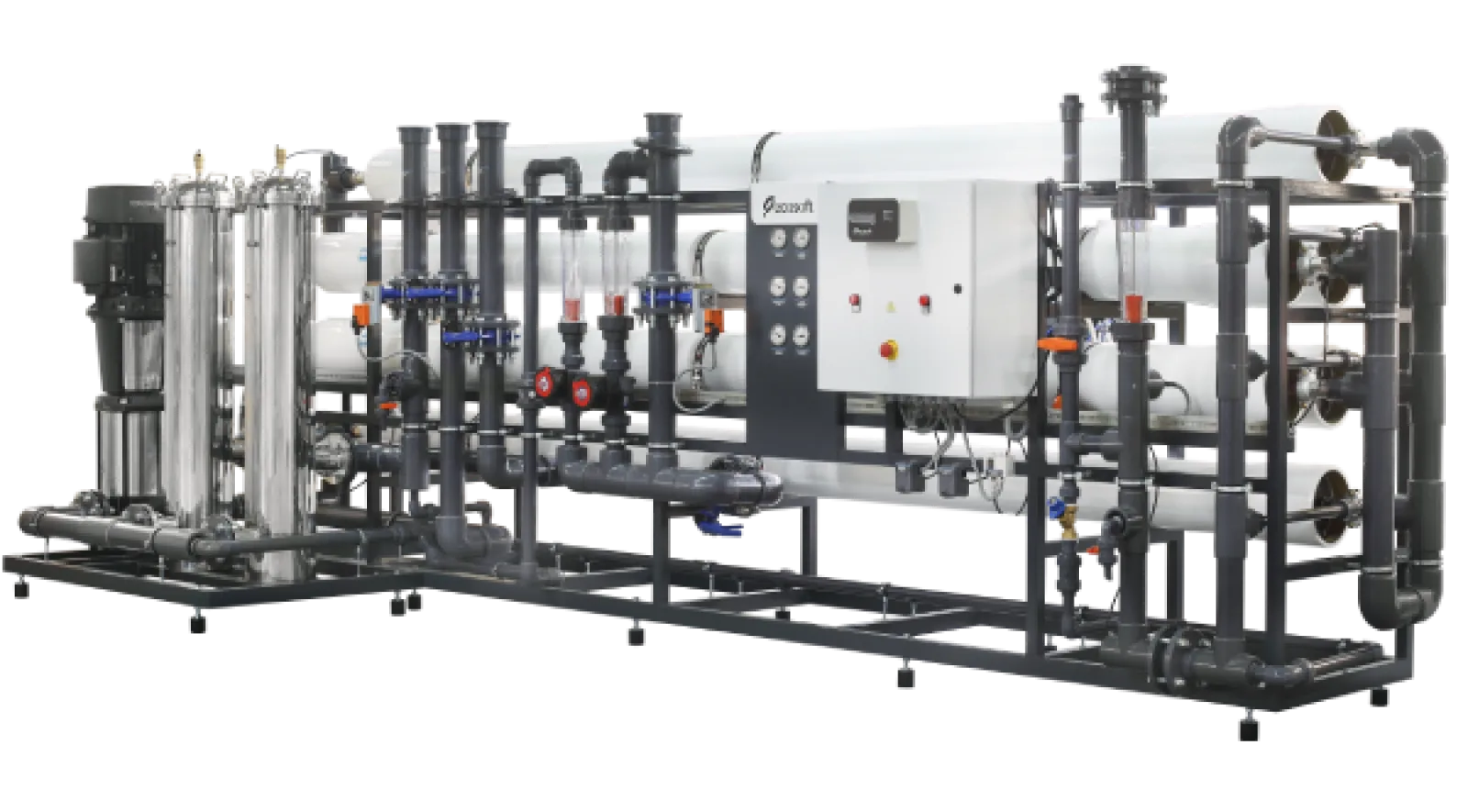

Ecosoft MO24 industrial reverse osmosis system is a turnkey solution for industrial water challenges, that includes pilot studies, engineering and manufacturing, commissioning and maintenance.
Ecosoft reverse osmosis systems are used in food and pharmaceutical industry, energy, chemical, semiconductor manufacturing, steam boilers and other industrial applications.
KEY FEATURES
Energy efficiency with Grundfos pump
Reliable performance with quality components and engineering
Individual project evaluation per request
ISO 9001 certified factory
CE marked and confirmed to be safe in accordance with EC NSPECIFICATION
Equipment
Grundfos CR 45-4 high pressure pump — 1 pcs
8040-4 membrane vessel — 6 pcs
Stainless steel housing with 7 PP 2,5 × 40″ filters — 2 pcs
Motorized butterfly valves (feed water in, flush out) — 2 pcs
Balancing valves (concentrate reject, concentrate recycle) — 2 pcs
Electrical cabinet with Ecosoft controller — 1 set
Piping, instrumentation — 1 set
Steel frame — 1 set
Options
Filmtec™ XLE-440 / ECO PRO-440 or Ecosoft ELP-8040 membranes
Dosing pump for antiscalant or other RO chemicals
Permeate inlet for permeate membrane rinse
Raw water blending line
Сonnections
Influent water — DN80
Permeate — DN65
Concentrate — DN80
Technical data
¹ depends on feed water TDS, temperature, and permeate recovery
² for low scaling/fouling water
